Product Features

Dynamic Brightness Adjustment : Energy-efficient illumination for every hour, noon/evening/late night/early morning. Automated brightness adjustment across four time zones.

Elegant & Eco-Friendly: Enhances urban aesthetics with patented, energy-saving design.

Back cover crafted from pressure- resistant ABS material, while the face shield employs engineering- grade PC material, ensuring lightweight.

Imported LED Chips: Ultra-high brightness, ultra-low lumen depreciation. Utilizes thermal dissipation technology for long lifespan and stable performance.

Plug-in Card Type Light Panel Installation: Allows for tool-free on-site maintenance.

Power Management Features: Battery level detection, remaining power display, low voltage warning.

Product Parameters

Item	Technical Parameter
Model	CHD200-1-A-KV02
LED Chip	Imported Chips
LED Beam Angle	30°
Whole Lamp Power	< 12W
Product Description	Three-color Disc + Three-color Arrow Light Units
Control	Phase Control
Dimensions (L×W×H)	645×645×2000 mm
Product Height	2000~2400 mm
Ambient Temperature	-40℃ ~ +80℃
IP Rating	IP53
Solar Panel Power	30W
Solar Panel Peak Current	1.79A
Battery Capacity	60Ah (Optional)
Battery Reference Size	350×166×174 mm
Base Max. Battery Size	400×320×220 mm
Working Voltage	12V
Compliance Standards	GB 14887-2011 "Road Traffic Signals" and relevant international standards.

Mobile: +86-199 2326 7977

Tel: +86-023 6276 6779

E-mail: abby@cdtsr.com

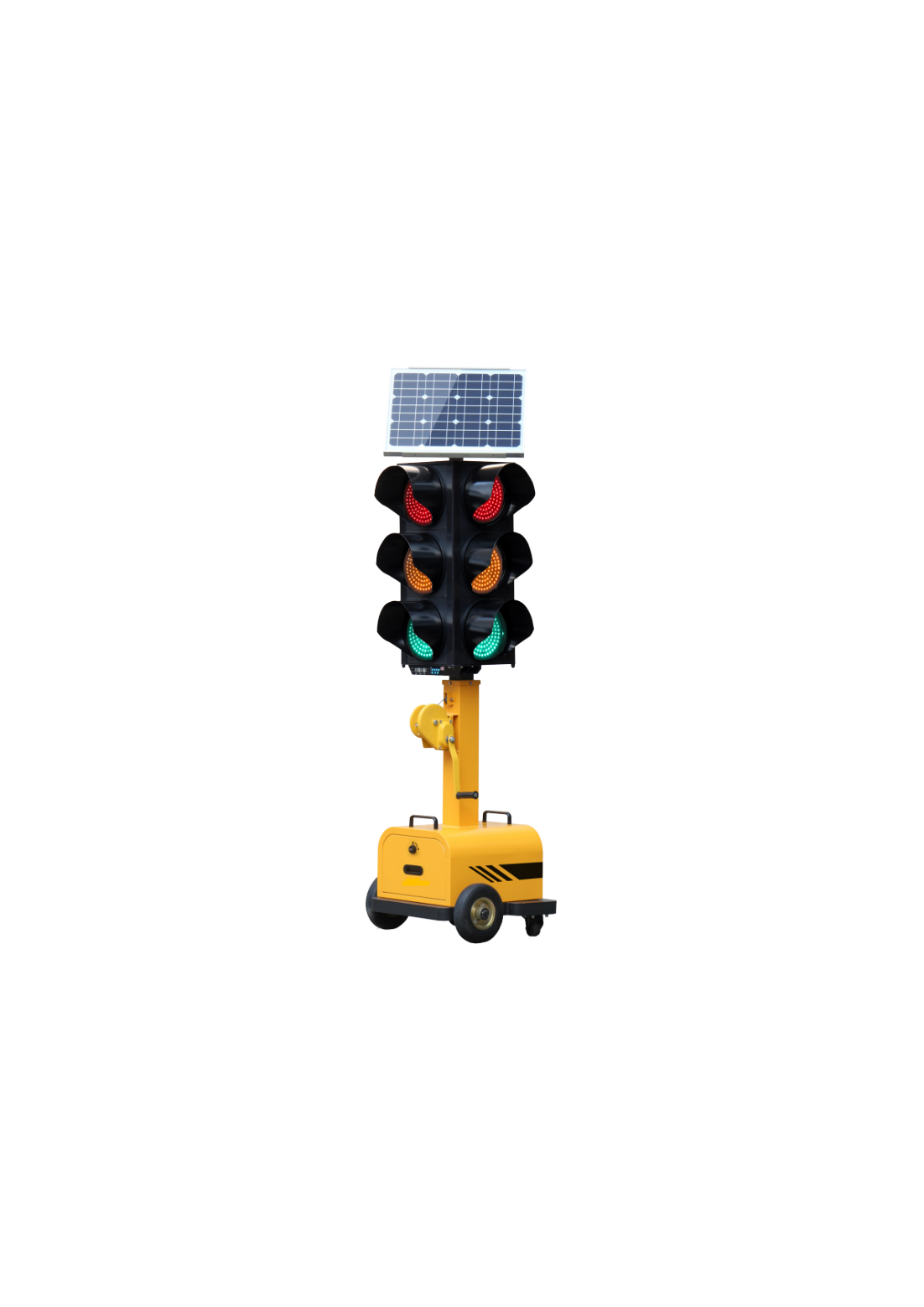

Portable Traffic Signals

Low Power Consumption Design On rainy day with solar panels last for 7 days Standby static power consumption reduced by 100 times
